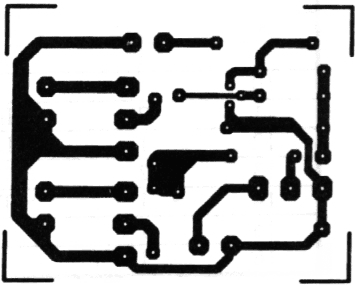

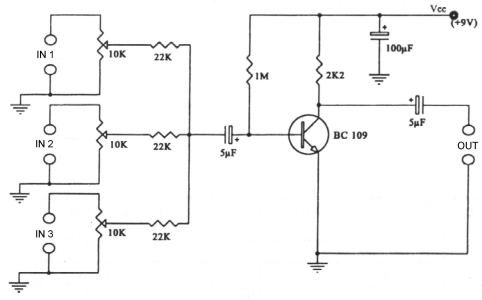

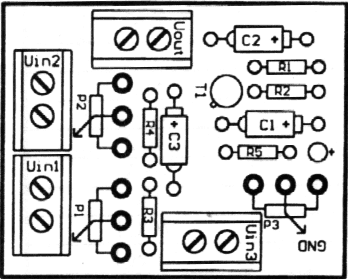

3 Line Mixer CircuitThis project is a 3 or more lines mixer. For more than 3 inputs you can repeat the input parts (P=10K R=22K). It powered with 9Vdc. circuit diagram Componets Layout PCB (5,5cm x 4,4cm) Author: |
|
|
